Introduction

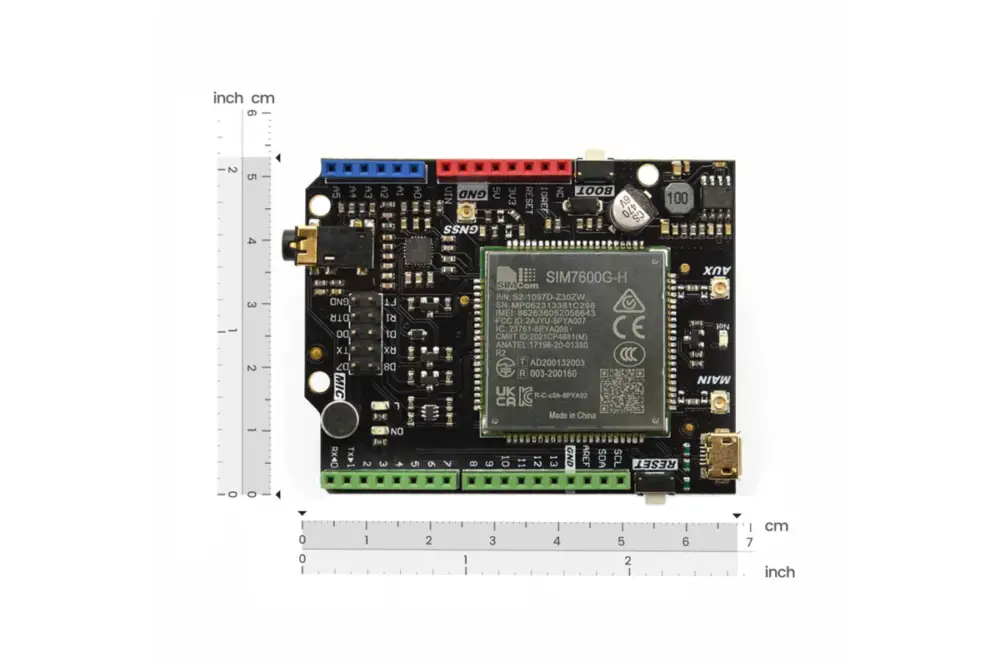

SIM7600G-H 4G (LTE) is an Arduino Shield that supports 2G/3G/4G, GNSS satellite positioning, and LTE CAT4 (150Mbps DL, 50Mbps UL). It features a standard Arduino pinout and is compatible with Arduino UNO, Leonardo, Mega, and other main controllers. It supports LTE-TDD/LTE-FDD/WCDMA/GSM frequency bands, GNSS positioning with GPS, CLONASS, BD, and other satellite systems, and includes multiple network protocols for global compatibility.

This expansion board enables effortless high-speed internet access, wireless communication, audio recording/playback, telephone messaging, and global positioning functionalities.

Explanation: The SIM7600CE-T 4G (LTE) Arduino expansion board and the SIM7600G-H CAT4 4G Shield have only one differencethe module used. However, they both support the same frequency bands and GNSS positioning functionalities.

Features

  • Controlled through AT commands
  • Supports GNSS satellite positioning (GPS, CLONASS, BD)
  • Supports multiple frequency bands: LTE-FDD/LTE-TDD/WCDMA/GSM
  • SMS support for MT, MO, CB, Text, and PDU modes
  • Supports various network protocols:
    TCP/IP/IPV4/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
  • Enables dial-up networking, telephone, messaging, TCP, HTTP, and other functionalities
  • Features two LED status displays: power supply status and network status

    • Specification

  • Operating voltage: DC 5V
  • Supported network frequency bands:
    LTE-TDD: B34/B38/B39/B40/B41
    LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
    UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
    GSM/GPRS/EDGE: 850/900/1800/1900 MHz
  • 4G communication rate: CAT4 (uplink speed of 50Mbps, downlink speed of 150Mbps)
  • GNSS satellite navigation technology (GPS, BD, GLONASS)
  • Operating environment: -40C to 85C
  • Dimensions: 6954mm

    • Shipping List

  • SIM7600G-H CAT4 4G (LTE) Shield x1
  • 4G TEL, GPS antenna pack x1
  • Triple-cut universal SIM card adapter x1

    • Documents

  • SIM7600CE-T 4G(LTE) Shield V1.0 Product wiki
  • SIM7600G-H CAT4 4G Shield Product wiki

    • Applications

  • Ideal for hobbyists for 4G communication learning and project development
  • Suitable for outdoor high-rate communication and positioning
  • Can be used for mobile tracking
  • Great for logistics tracking
  • Enables remote monitoring
