Introduction
Note: Power has been merged with PPS without affecting usage.
You must have used a GPS receiver. It is easy to be found in most places, such as smartphones, cars, and computers. They are used to track your location all over the globe.
GPS Receiver for Arduino is a unit embedding GPS module and antenna in a small foot-print enclosure. By using the TinyGPS library, Arduino can retrieve geographic coordinates (latitude and longitude, altitude), speed, heading, and GMT time.
The update rate is an important performance index of a GPS receiver. Most GPS in mobile phones provide an update rate of 1Hz, which means, only one set of data can be retrieved in one second. For GPS receivers with 1~10Hz, the data interval is much reduced and thus can be used for more demanding applications (e.g. on fast-moving vehicles).
GPS Module with Enclosure Projects:
How to make a GPS Speedometer?
Hardware components:
- OLED 2828 Display Module
- GPS Module with Enclosure
- Dreamer Nano V4.1 (Arduino Leonardo Compatible)
- 3mm LED Pack (50 pcs)
- perfboard
- Hand tools and fabrication machines:
- 3D Printer (generic)
- Soldering iron (generic)
Specification
- UBX-G7020-KT solution
- 1Hz(default) ~ 10Hz output
- 9600bps(default) [support:4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600] TTL serial interface
- 5v @ 30mA (support 3.3~5v)
- 56-Channel receiver
- Extremely high sensitivity -161dBm
- Accuracy 2.5m (Autonomous) / <2m[SBAS]
- Operating temperature: -40C to 85C
- Hot Start: 1s
- Warm Start: 28s
- Cold Start: 29s
- Module Size 28*28*8.6mm (1.10*1.10*0.34″)
- Enclosure Size 37x48x16mm(1.46×1.89×0.63″)
- LED indicator
Pin Definition:
- WhitePPS
- RedVCC
- BlueTXD
- GreenRXD
- BlackGND
- YellowEN
Shipping List

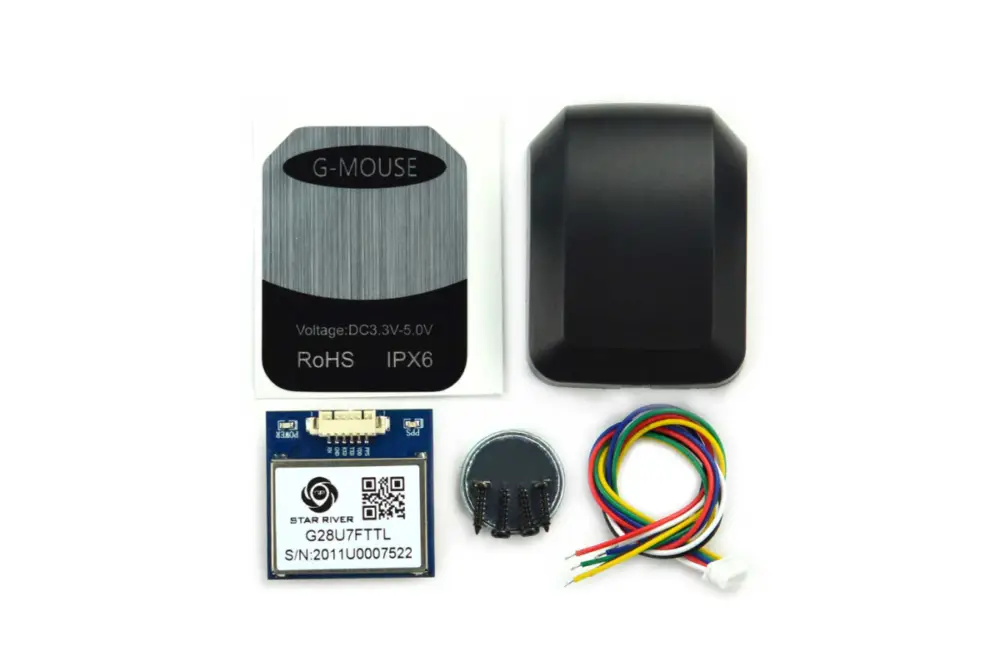

- GPS Receiver for Arduino(Model) x1
- Enclosure x1
- Cable x1
Documents
- Product Wiki
- TinyGPS Libreries
- VK2828U7G5LF datasheet
- VKEL GPS Test Assistant
